| 起源の場所: | 中国 |
|---|---|
| ブランド名: | BAXIT |
| モデル番号: | BXT-BT-150/BXT-BT-300/BXT-BT-1L/BXT-BT-2L/BXT-BT-5L/BXT-BT-10L |
| 最小注文数量: | 1 |
| 価格: | US$4340-20800/unit |
| パッケージの詳細: | 紙箱/木箱 |
| 受渡し時間: | 5~8 作業日 |
| 支払条件: | L/C,D/A,D/P,T/T,ウェスタン・ユニオン,マネー・グラム |
| 供給の能力: | 10000個 |
| モデル: | BXT-BT-2L | 最大撹拌容量（異なる処理能力を持つカスタマイズ可能な治具）: | 50m1-1100ml*ダブルカップ (2000ml容器) |
|---|---|---|---|
| 作業方法: | 真空、回転、回転、正転と逆転、非接触混合モード | 回転速度: | 10~2000RPM (調整可能) |
| 回転速度: | 10〜2000RPM (軌道速度と同期) | 軌道回転速度比: | 11 または 2 つのモーターで個別に調節可能 (オプション) |
| 実行時間: | 0-30分 (調整可能) | 作業空洞: | 二室調動 |
| 機械のサイズ: | 620*750*550 (mm) | 体重: | 150kgについて |
| バキューム度: | ﹣101kPa調整可能/内蔵高出力オイルポンプ真空デバイス | 適当な環境: | シルバーパスタ / ポリウレタン / エポキシAB / インク / シリコン / 封装粘着剤 |
| パワー: | 待機状態: 50W,動作電源消費: 2.5kW | 生産効率: | マイクロメートルの大きさの泡が完全に除去されるまで,混合物を1〜3分間混ぜます. |
| 電源: | AC220V±10%、50/60HZ | 装置の適用性: | 流れる様々な液体は粉末や固体物質と混ぜられ,それから動かし,泡を消し,散布されます. |
| バランス装置: | 重量カウンターバランス、機械式ボトムスプリング保護装置、最大40gのアンバランス状態でも安定して動作可能 | 安全機能: | ドアロックアラーム,振動アラーム,真空アラーム,過負荷アラーム,作業完了提示,緊急停止スイッチ |
| プログラム収蔵可能量: | 50 セット の プログラム,各 セット は 5 段階 で 独立 に 構成 さ れ ます.各 段階 は 時間,速度,方向,真空 容量 に よっ て 調整 でき ます. | ||
| ハイライト: | Laboratory Biopharmaceutical Materials Mixer,Adjustable Vacuum Planetary Centrifugal Degassing Mixer,Rotational Speed Planetary Centrifugal Degassing Mixer |
||

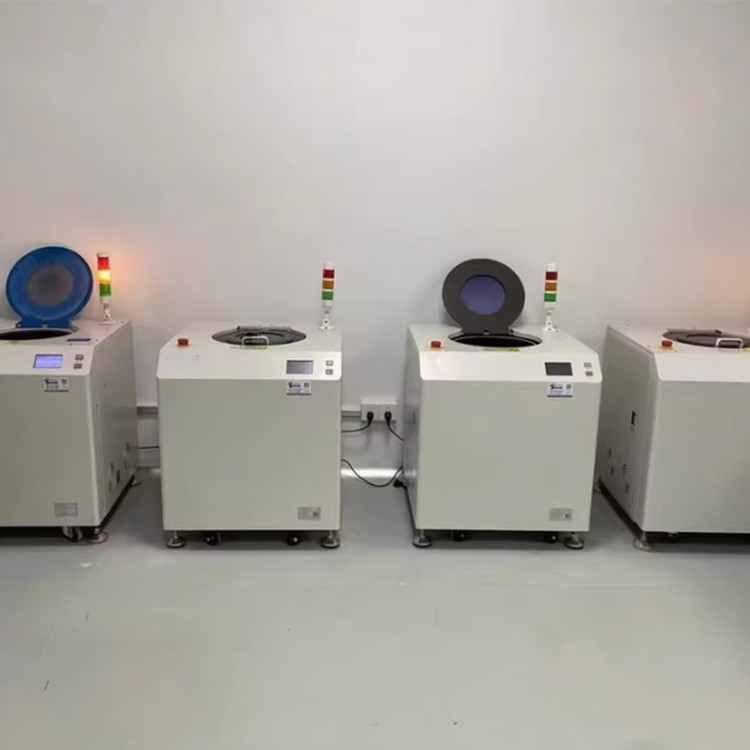

Vacuum Degassing Mixer
The container support cabinet is tilted 45 degrees with respect to the rotating axis.
It fixes the container containing the material on this support.
"Rotation (around the axis): clockwise circular movement (for defoaming)
"Self-rotation": counterclockwise rotation, rotating on the circular movement track with the center of the container as the axis (for mixing). The interaction of self-rotation and rotation causes vortices and up-down convection, expelling air bubbles from the material. During mixing and dispersion, no bubbles are mixed in.
| Model | BXT-BT-150 | BXT-BT-300 | BXT-BT-1L |
| Maximum stirring capacity (Customizable fixtures with different processing capacities) |
5ml-150ml*Single cup (With 300ml container) |
5ml-350ml*Double cups (With 600ml container) |
10ml-600ml*Double cups (With 1000ml container) |
| 1g-150gSingle cup (Dependent on the material density) |
1g-350g*Double cups (Dependent on the material density) |
10g-600g*Double cups (Dependent on the material density) |
|
| Compatible with syringes within the range of 3 to 30CC | Compatible with syringes within the range of 3 to 55CC | Compatible with syringes within the range of 5 to 200CC | |
| Work method | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode |
| Revolution speed | 200 - 2000RPM (adjustable) |
1- 3000RPM (adjustable) |
10 - 2500 RPM (adjustable) |
| Rotation speed | 200–2000 RPM (synchronized with orbital speed) | 1–3000 RPM (synchronized with orbital speed) |
10–2500 RPM (synchronized with orbital speed) |
| Orbital-rotational speed ratio | 1:1 (Not Optional) | 1:1 or separately adjustable by dual motors (optional) | |
| Running time | 0-30min(adjustable) | ||
| Working cavity | Single-chamber agitation | Dual-chamber agitation | |
| Machine size | 520*590*450(mm) | 580*450*620(mm) | 660*520*700(mm) |
| Weight | About 85kg | About 110kg | About 130kg |
| Vacuum degree | ﹣98kpa Cannot be adjusted/ Built-in oil-free vacuum device |
﹣101kpa Adjustable/ Built-in oil-free vacuum device |
|
| Applicable environment | Polymer materials / Lithium battery materials / Resin | Resin/Silicone/AB glue/Transparent glue/Powder + Glue | Silver paste / ink / slurry / hot molding body / medical aesthetics / encapsulation adhesive |
| Power | Standby: 50W, Operating power consumption: 1.2kW | Standby: 50W, Operating power consumption: 1.5kW | Standby: 50W, Operating power consumption: 2kW |
| Production efficiency | Stir the mixture for 1-5 minutes until the micrometer-sized bubbles are completely eliminated | Stir the mixture for 1-3 minutes until the micrometer-sized bubbles are completely eliminated | |
| Power supply | AC220V±10%,50/60HZ | ||
| Equipment applicability | Various flowing liquids are mixed with powders, solid materials, and are then agitated, defoamed, and dispersed. | ||
| Balance device | Weight counterweight, mechanical bottom spring protection device, can work stably under a maximum unbalance of 20g | Weight counterweight and mechanical bottom spring protection device, capable of stable operation under a maximum unbalance of 40g | |
| Safety function | Automatic shutdown due to failure / Shutdown upon opening the cover / Emergency stop | Door lock alarm, vibration alarm, vacuum alarm, overload alarm, work completion prompt, emergency stop switch | |
| Program storage capacity | 20 sets of programs, each set independently configured in 5 stages. Each stage can be adjusted for time, speed, direction, and vacuum capacity | 50 sets of programs, each set independently configured in 5 stages. Each stage can be adjusted for time, speed, direction, and vacuum capacity. | |
