| 起源の場所: | 中国 |
|---|---|
| ブランド名: | BAXIT |
| モデル番号: | BXT-WQ-10S |
| 最小注文数量: | 1 |
| 価格: | US $2930.0 / Unit |
| パッケージの詳細: | 紙箱/木箱 |
| 受渡し時間: | 5~8 営業日 |
| 支払条件: | ,L/C,D/A,D/P,T/T,ウェスタン・ユニオン,マネー・グラム |
| 供給の能力: | 10000個 |
| モデル: | BXT-WQ-10S | 金属試料の直径: | φ0.3mm～φ10mm |
|---|---|---|---|
| サンプルの長さ: | 200mm~300mm | 曲がり角: | ± 90度 (平面曲線) |
| 数える範囲: | 0 - 9999回 | 表示モード: | LCDタッチスクリーンディスプレイ、回数を自動的に記録します |
| 曲がる速度: | ≤60rpm 可変速制御 | 電源: | 220V、50HZ |
| 総寸法: | 640*450*1300mm | 体重: | 200KGについて |
| ハイライト: | metal wire bending test machine,electric wire bending test machine,standard bending test machine |
||

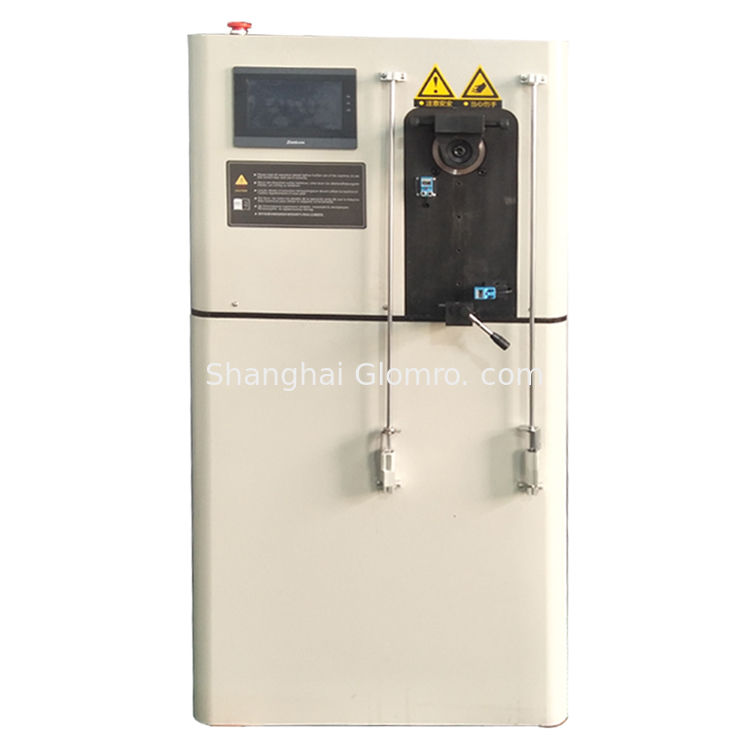

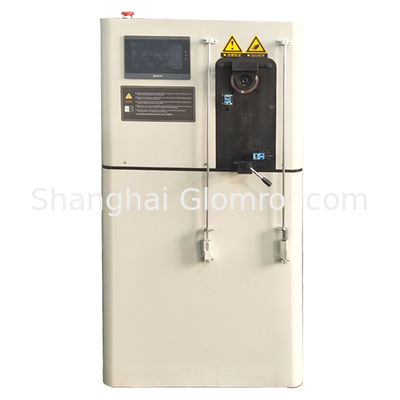

Metal Wire Repeated Bending Testing Machine
This testing machine is mainly composed of two parts: the main body and the electrical measurement and control system. It uses mechanical transmission to apply the test torque. A sample of a certain diameter or thickness is passed through the guide sleeve and clamped in two specified-sized jaws. Pressing the button causes the sample to repeatedly bend left and right by 90 degrees. The bending test times are detected by the photoelectric switch. After the sample breaks, the equipment automatically stops, and the LCD touch screen controller displays and records the bending test times.
Advantages
1. The LCD touch screen operating system adopted has eliminated the previous old-fashioned key operation panel, making the operation more convenient and also increasing the service life of the operating system by 5-6 times.
2. The combination of servo motor and worm gear reducer to output power enables the adjustment of the test speed at will, and the operation is smooth without noise.
3.An additional weight hanging plate has been added, which can apply the standard-typed tension force to the sample, making up for the deficiency of other manufacturers' similar equipment in being unable to apply precise tension force during the critical arbitration test.
Technical Specifications
| Model | BXT-WQ-10S |
| Diameter of the metal sample | Φ0.3mm-Φ10mm |
| Sample length | 200mm-300mm |
| Bending angle | ± 90 degrees (planar bending) |
| Counting range | 0 - 9999 times |
| Display mode | LCD touch screen display, automatically records the number of times |
| Bending speed | ≤60rpm Variable-speed control |
| Power supply | 220V,50Hz |
| Overall dimensions | Overall dimensions |
| Weight | About 200kg |
