| 起源の場所: | 中国 |
|---|---|
| ブランド名: | BAXIT |
| モデル番号: | BXM（d） |
| 最小注文数量: | 1 |
| 価格: | US $73.85 - 258.04 / Set |
| パッケージの詳細: | カートンボックス/木製の箱 |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union、MoneyGram |
| 供給の能力: | 10000 PSC |
| 名前: | 爆発プルーフ配電ボックスコントロールボックス | タイプ: | BXT-2回路 |
|---|---|---|---|
| ハイライト: | explosion proof power distribution box,IP66 aluminum alloy junction box,hazardous area petrochemical plant electrical box |
||
product introduction

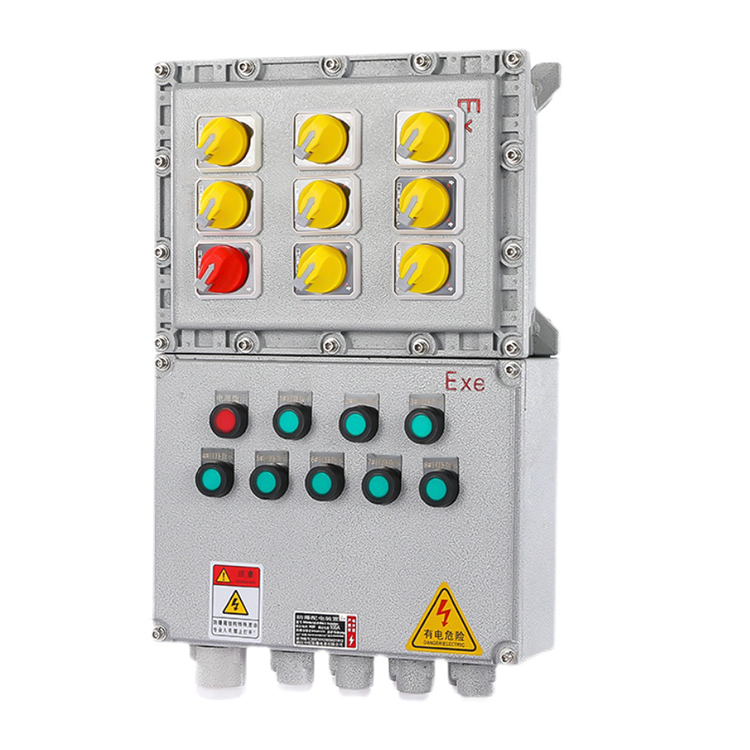

The BXM(D) series explosion-proof distribution box is a highly secure power distribution and control device specifically designed for explosive hazardous environments.
| Model | BAXIT-BXM(D) | Product Name | Explosion-proof distribution box |
| Rated voltage | 220V/380V | Rated current | 1-630A |
| Product material | Aluminum alloy | Protection level | IP65 |
| Entrance specification | G1/2-G4 | Number of branches | No loop limit |
| Cable outer diameter | 6-82mm | Entry and exit ports | Inward then outward, inward then upward |
| Installation method | Wall-mounted / Standing type | Explosion-proof mark | Exde IIBT4Gb |
Access Point Opening Reference Table:
Can be customized according to requirements
| Nominal diameter | pipe thread type | Internal and external thread dimensions | Outer diameter of the cable |
| DN15 | G1/2 | ⌀19.4 ⌀20.4 | ⌀7-⌀10 |
| DN20 | G3/4 | ⌀24.8 ⌀26.1 | ⌀10-⌀14 |
| DN25 | G1 | ⌀30.8 ⌀32.5 | ⌀12-⌀18 |
| DN32 | G1 1/4 | ⌀39.5 ⌀41.3 | ⌀15-⌀23 |
| DN40 | G1 1/2 | ⌀44.9 ⌀47.7 | ⌀18-⌀30 |
| DN50 | G2 | ⌀56.8 ⌀59 | ⌀25-⌀38 |
| DN70 | G2 1/2 | ⌀72.4 ⌀76 | ⌀30-⌀46 |
| DN80 | G3 | ⌀85.1 ⌀88 | ⌀38-⌀56 |
| DN100 | G4 | ⌀110 ⌀114 | ⌀61-⌀80 |
Case photo
product details
Application scope
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South
America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central
America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler
4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The
service is good
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
