| ブランド名: | BAXIT |
|---|---|
| 証明: | Provided |
| モデル番号: | BXT-YT/GZ-03 |
| 最小注文数量: | 1 |
| 価格: | US $81.23 - 684.0 / Set |
| パッケージの詳細: | カートンボックス/木製の箱 |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union、MoneyGram |
| 供給の能力: | 100000psc |
| 製品名: | 爆発的な非スカーキングプラグとソケット爆発プルーフコネクタ | カスタマイズ: | はい |
|---|---|---|---|
| ハイライト: | ATEX explosion proof plug,industrial explosion proof connector,non-sparking explosion proof outlet |
||
product introduction

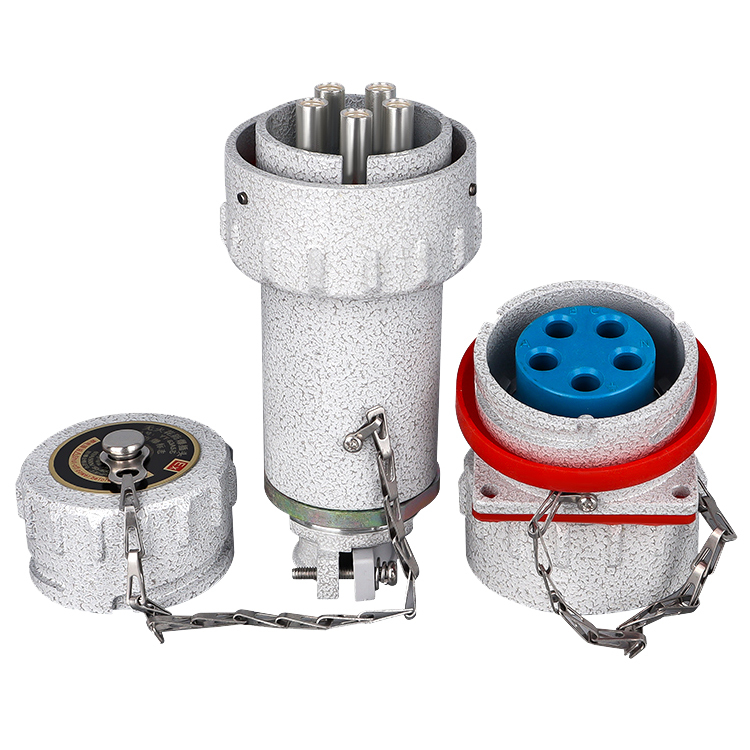

Explosion-proof non-sparking sockets and plugs are a special type of industrial electrical connection device specifically designed for environments with flammable and explosive hazards. The core concept of this design is to completely eliminate mechanical sparks or electrical sparks during connection and disconnection through a series of precise structural, material, and process innovations. This fundamentally eliminates ignition sources and provides a crucial guarantee for safe production in fields such as petroleum, chemical engineering, military industry, and mining.
Product parameters
| Model | BAXIT-YT/GZ/YZ/XZ | Product Name | Non sparking explosion-proof connectors |
| Working voltage | 220V/380V | Installation method | Portable / Fixed type |
| Product material | Aluminum alloy casing | Pin insertion | Silver plating |
| Environmental temperature | -20~60℃ | Temperature rise | ≤65K |
| Insulation resistance | ≥1000mΩ | Contact resistance | ≤0.5mΩ |
| Corrosion resistance level | WF1 | Protection level | IP66 |
| Working current | 15/16/25/30/32/60/63/100/200/300A | ||
| electrode | 1P+N+PE(3PIN),3P+PE(4PIN),3P+N+PE(5PIN) | ||
| Explosion-proof mark | EXnAIICT4Gc | ||
Size Installation Diagram
| Size/ Specification |
L1≈ | L2≈ | L3≈ | L4≈ | D1 | D2 | D3 | ød±0.07 | ød1 | ød2 | P | Q±0.2 |
| 15/16A | 130 | 55 | 132 | 8 | ø49 | ø33 | ø35 | 13 | 3 | 4.5 | 42.5 | 34 |
| 25A | 130 | 55 | 132 | 8 | ø49 | ø33 | ø35 | 13 | 3 | 4.5 | 42.5 | 34 |
| 32A | 144 | 64 | 142 | 18 | ø61 | ø42 | ø51 | 15.6 | 3.5 | 4.5 | 51 | 42 |
| 60A | 153 | 72 | 145 | 22 | ø64 | ø48 | ø51 | 18 | 5.5 | 4.5 | 56 | 47.5 |
| 100A | 166 | 85 | 173 | 30 | ø79 | ø61 | ø65 | 24 | 7 | 5.5 | 70 | 60 |
| 150A | 177 | 92 | 188 | 32 | ø84 | ø65 | ø70 | 27 | 8.5 | 5.5 | 75 | 64 |
| 200A | 195 | 100 | 199 | 32 | ø90 | ø71 | ø73.5 | 30 | 10 | 5.5 | 80 | 70 |
| 300A | 200 | 100 | 199 | 42 | ø90 | ø71 | ø73.5 | 34.5 | 12 | 5.5 | 80 | 70 |
Product details
Aplication
