| 起源の場所: | チアン |
|---|---|
| ブランド名: | BAXIT |
| 証明: | ATEX |
| モデル番号: | BXT-DN25*700 |
| 最小注文数量: | 1 |
| 価格: | US $1.47 - 48.46 / Set |
| パッケージの詳細: | カートンボックス/木製の箱 |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union、MoneyGram |
| 供給の能力: | 100000 |
| 名前: | 爆発防止柔軟なゴムホース | 材料: | 炭素鋼 /ゴム |
|---|---|---|---|
| 公称直径: | DN25 | 長さ: | 1000mm |
| 爆発的なマーク: | ex d llc gb/exe lc gb/ex td a211p65 | ケーブル外径: | 見つけた。11-18mm |
| ハイライト: | explosion proof flexible hose,chemical industry junction box hose,industrial explosion proof connector hose |
||
Product introduction
Oil Resistant Explosion Proof Flexible Rubber Hose for Industrial Use
BNG-25 G1 Inch Explosion Proof Flexible Conduit for 11-18mm Cable Diameter
| Model | External Thread Diameter | Internal Thread Diameter | Cable Outer Diameter | Series | Material | Explosion-proof Mark |
| BXT-DN15 | ≈20mm | ≈19mm | Ф6-10mm | BNG | Carbon steel / rubber | Exd IIGB |
| BXT-DN20 | ≈26mm | ≈24mm | Ф9-14mm | BNG | Carbon steel / rubber | Exd IIGB |
| BXT-DN25 | ≈33mm | ≈30mm | Ф11-18mm | BNG | Carbon steel / rubber | Exd IIGB |
| BXT-DN32 | ≈42mm | ≈39mm | Ф14-25mm | BNG | Carbon steel / rubber | Exd IIGB |
| BXT-DN40 | ≈48mm | ≈45mm | Ф17-28mm | BNG | Carbon steel / rubber | Exd IIGB |
| BXT-DN50 | ≈60mm | ≈56mm | Ф25-38mm | BNG | Carbon steel / rubber | Exd IIGB |
| BXT-DN70 | ≈75mm | ≈72mm | Ф32-45mm | BNG | Carbon steel / rubber | Exd IIGB |
| BXT-DN80 | ≈88mm | ≈85mm | Ф35-55mm | BNG | Carbon steel / rubber | Exd IIGB |
Product details

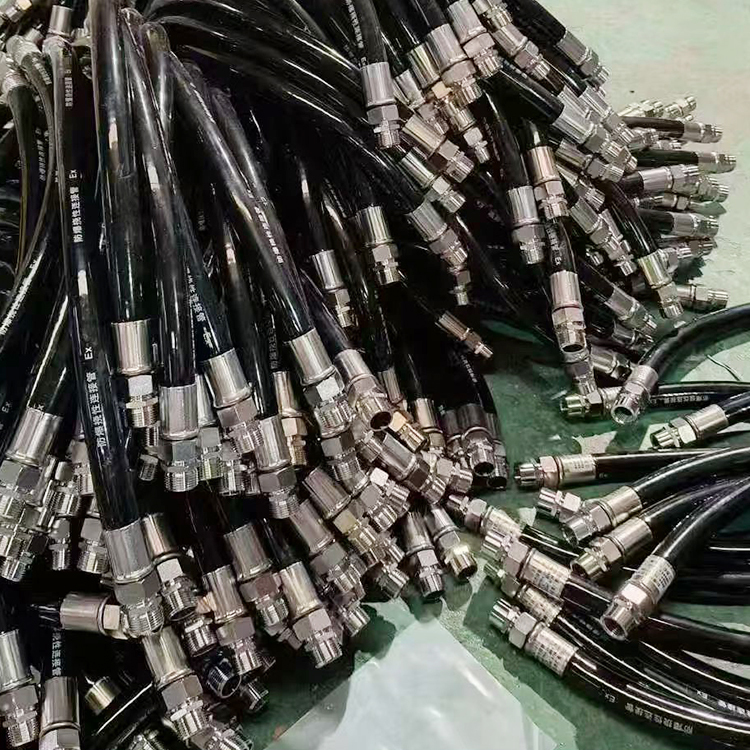

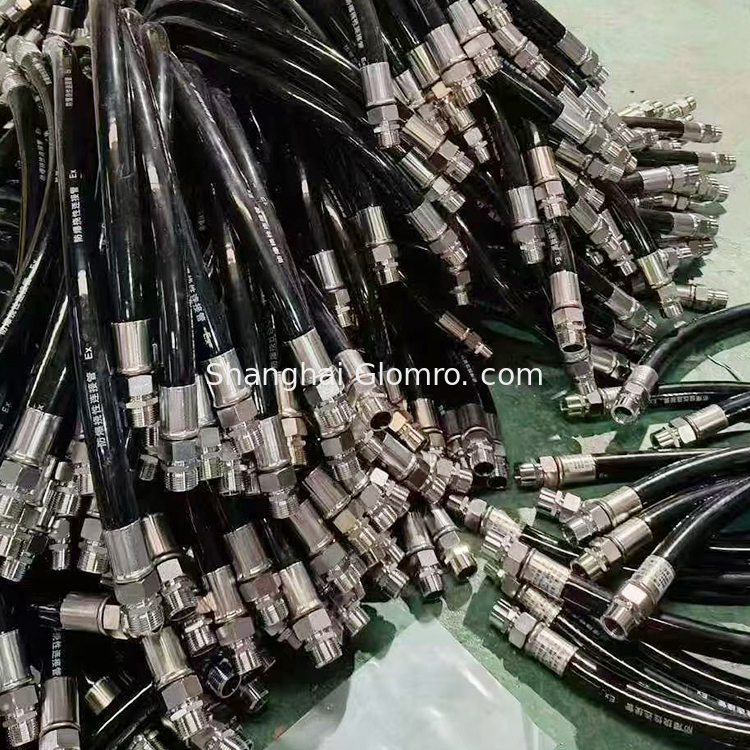

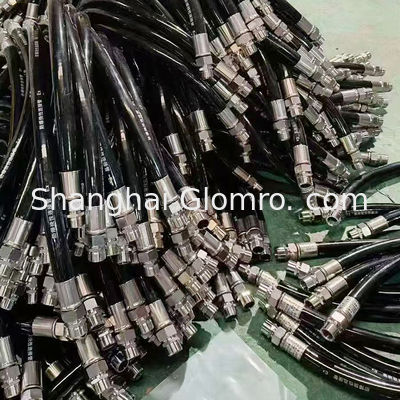

Product photos
The BNG series explosion-proof flexible connection pipe is a crucial safety connection component, specifically designed for connecting explosion-proof equipment with wiring steel pipes in hazardous locations with potential explosive gas environments. It can provide a sturdy, sealed and flexible connection in complex installation environments, effectively overcoming the stress caused by equipment displacement, vibration or angle deviation, while ensuring that the entire electrical circuit maintains a high level of explosion-proof safety and reliability.
Product application
1. Applicable to hazardous areas of Zone 1 and Zone 2;
2. Applicable to flammable dust environments in Zone 21 and Zone 22;
3. Applicable to explosive gas environments of categories IIA, IB, and IC, with temperature groups ranging from T1 to T6;
4. Applicable to hazardous areas such as chemical plants, oil refineries, petroleum extraction, medicine, military industry, and military facilities.
